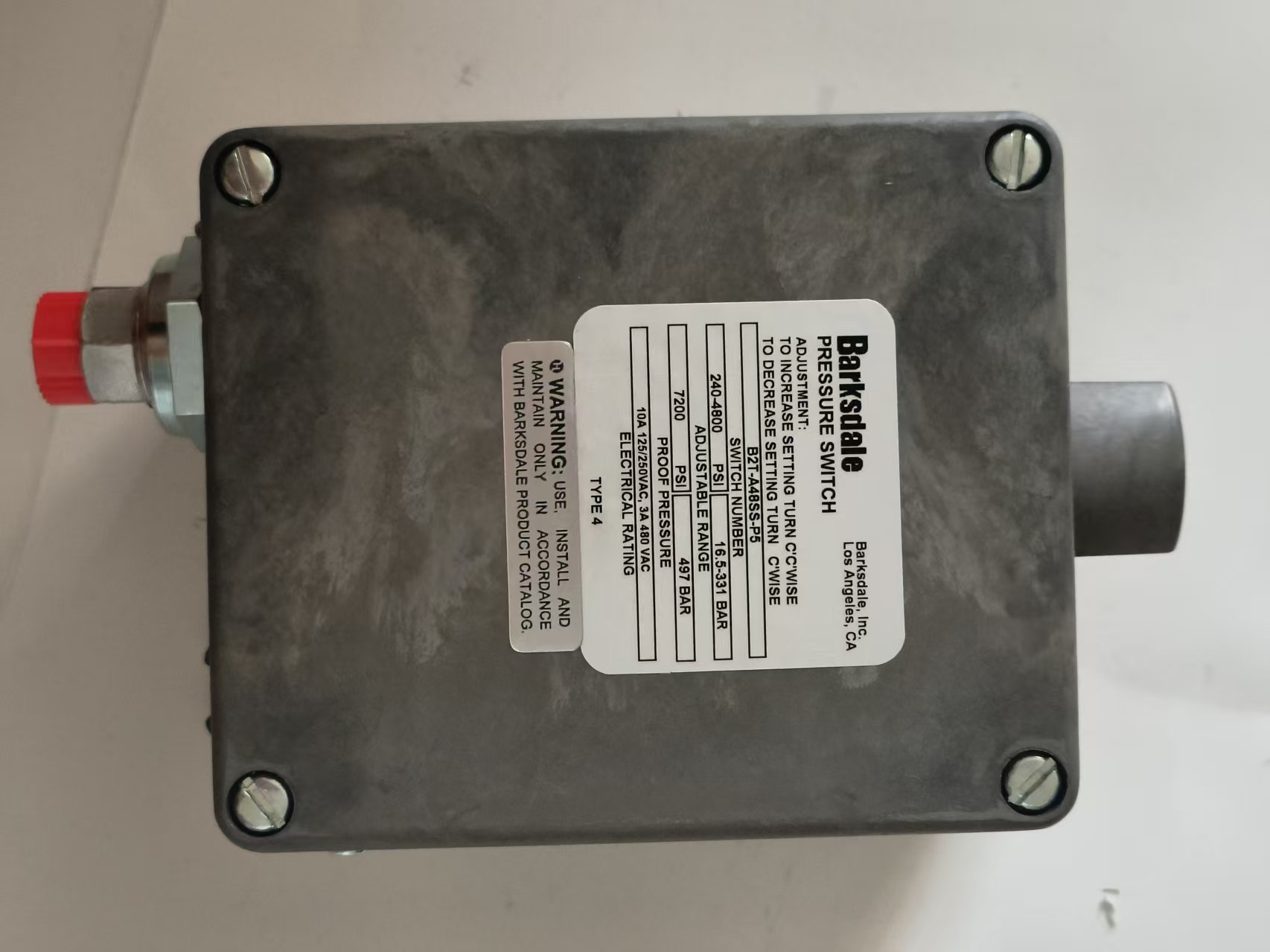

Barksdale B2T-A48SS-P5 Bourdon Tube Pressure Switch, 316SS, P5 Option New Original 1-year Warranty

›

‹

  • Barksdale B2T-A48SS-P5 Bourdon Tube Pressure Switch, 316SS, P5 Option New Original 1-year Warranty
  • Barksdale B2T-A48SS-P5 Bourdon Tube Pressure Switch, 316SS, P5 Option New Original 1-year Warranty

›

Barksdale B2T-A48SS-P5 Bourdon Tube Pressure Switch, 316SS, P5 Option New Original 1-year Warranty
Genuine Barksdale B2T-A48SS-P5 high‑accuracy pressure switch, 316SS Bourdon tube, NEMA 4, P5 feature, for hydraulic and process control.
Contact Us
Specifications
  • Model: B2T‑A48SS‑P5
  • Series: B1T/B2T Bourdon Tube
  • Type: Housed Pressure Switch, P5
  • Accuracy: ±1% FS
  • Contact: SPDT snap‑action, silver alloy
  • Rating: 10A @ 125/250VAC; 0.5A @ 24VDC
  • Pressure Connection: 1/4” NPT female
  • Wetted Parts: 316SS
  • Enclosure: Anodized aluminum, NEMA 4
  • Temp: −20°C ~ +80°C
